Instrumentation Studio for .NET
	>> License

Version:5.01

Instrumentation Studio for .NET is a winform collection of common instrumentation interface and graphic components for .NET. It includes 13 fully managed winform controls which are royalty-free runtime distributed. These components are high-quality and very popular in the process control, MMI, scientific, engineering, simulation, and data acquisition communities. All of them are designed for high speed.
This software package includes Annunciator, Gauge, Indicator, Knob, Led, Meter, NumberLed, Odometer, Percent, Selector, Slider, Toggle and Trend etc. 13 components(*.dll), one demo, all help files and C# & VB.NET examples. They will help you become familiar with all aspects of the product.
Ten years product history, top well-known customers, high stability and reliability.
We provide full software packs for different versions of framework.

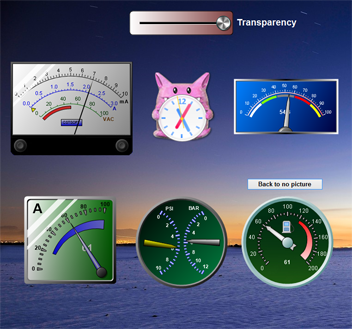

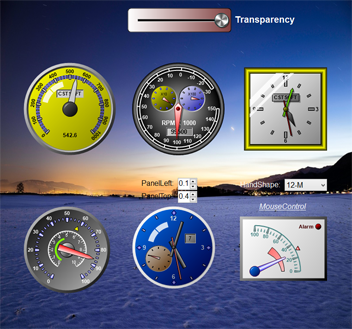

Meter.NET

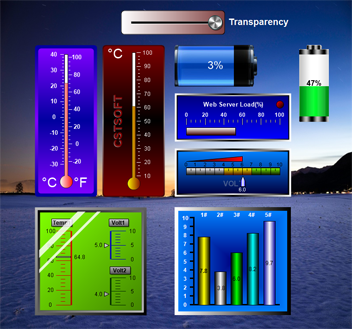

Gauge.NET

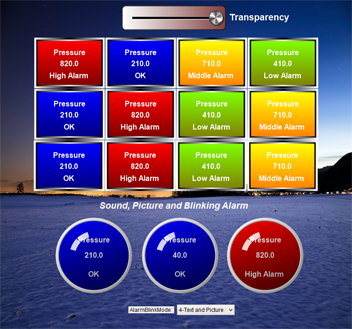

Annunciator.NET

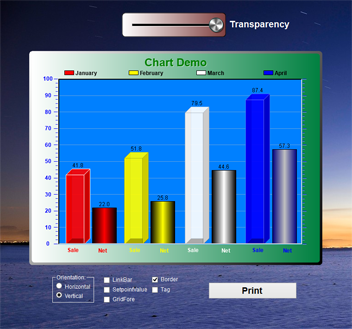

Indicator.NET

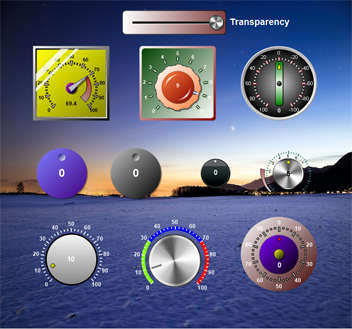

Knob.NET

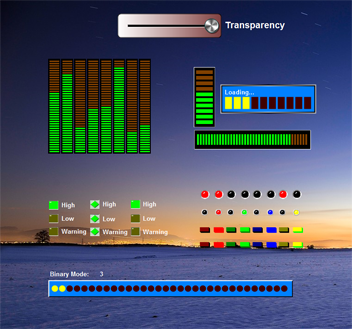

LED.NET

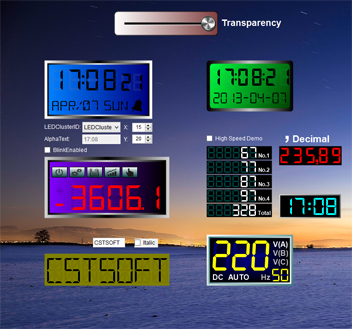

NumberLED.NET

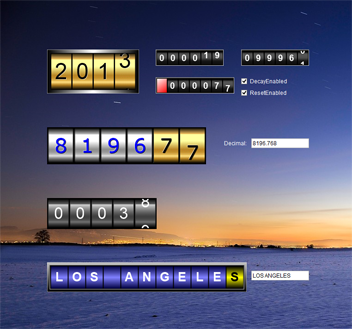

Odometer.NET

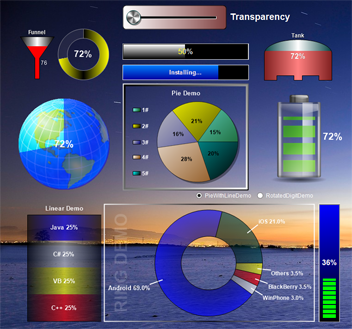

Percent.NET

Selector.NET

Slider.NET

Toggle.NET

Trend.NET

5.01 New Features:
	XLabelMode property added for Trend.NET. This property enables label for x axis to be displayed with italic or vertical mode. MultiScalesAutoAdjust property added for TrackItem of Trend.NET. Picture property added for LEDClusterItem class of NumberLED.NET. ......

for .NET Features:
	Totally Transparent or half-transparent effect. Pure .NET framework managed components. 100% compatible with Visual Studio.NET. All painting by GDI+. New namespace. Strong-Name signed. Built-in powerful propertypage. 3D Appearance and Graphic Smooth(AntiAlias). All components use double buffering to produce smooth animation and avoid flicking. Object-oriented design created specifically for the .NET framework. Designed for maximum configurability, simplicity, and interoperability. Designed for very high efficiency and speed.

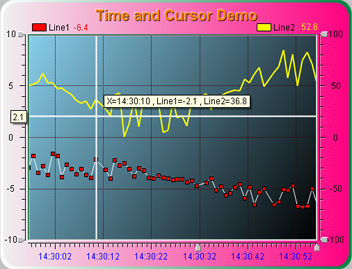

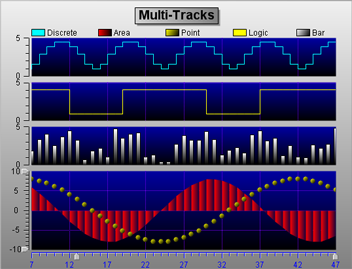

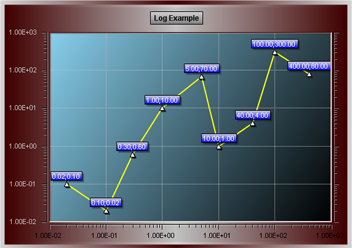

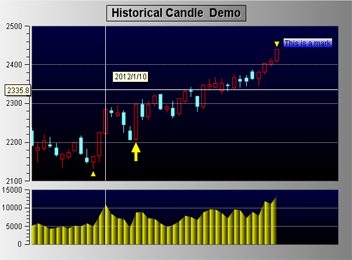

Trend for .NET(super charting and plotting component):
	Built-in and Powerful Propertypages for True Visual Designing. FIFO (First In First Out) Buffer. Support Drawing Point,Line(Anolog and Logic),Scroll Bar for Data Display. Unlimited Tracks. Unlimited Variables. Unlimited Bands of X or Y Axes. Unlimited Captions. Unlimited Legends. Unlimited Annotations. Unlimited Marks. Multiple Scales for Y Axes. Built-in Data Cursor(support mouse & keyboard). Built-in Statictical Features. High-Speed Support. Linear and Logarithmic Scales. Horizontal or Vertical Orientation of Axes. Forward or Backward Direction of Charting. Panning and Zooming Functionality Support. Printing,Saving Picture(Image Property). Time/Date Formats for X Axes. 3D Appearance and Graphic Smooth. Built-in Text Window for Data Cursor.

Support:
	Visual Studio.NET 2003/2005/2008/2010/2012

Support OS:
	WinXP/Vista/Win7/Win8 32/64 bit
Components included
	Annunciator Gauge Indicator Knob LED Meter NumberLED Odometer Percent Selector Slider Toggle Trend

Features list for Lite/Standard/Pro edition
